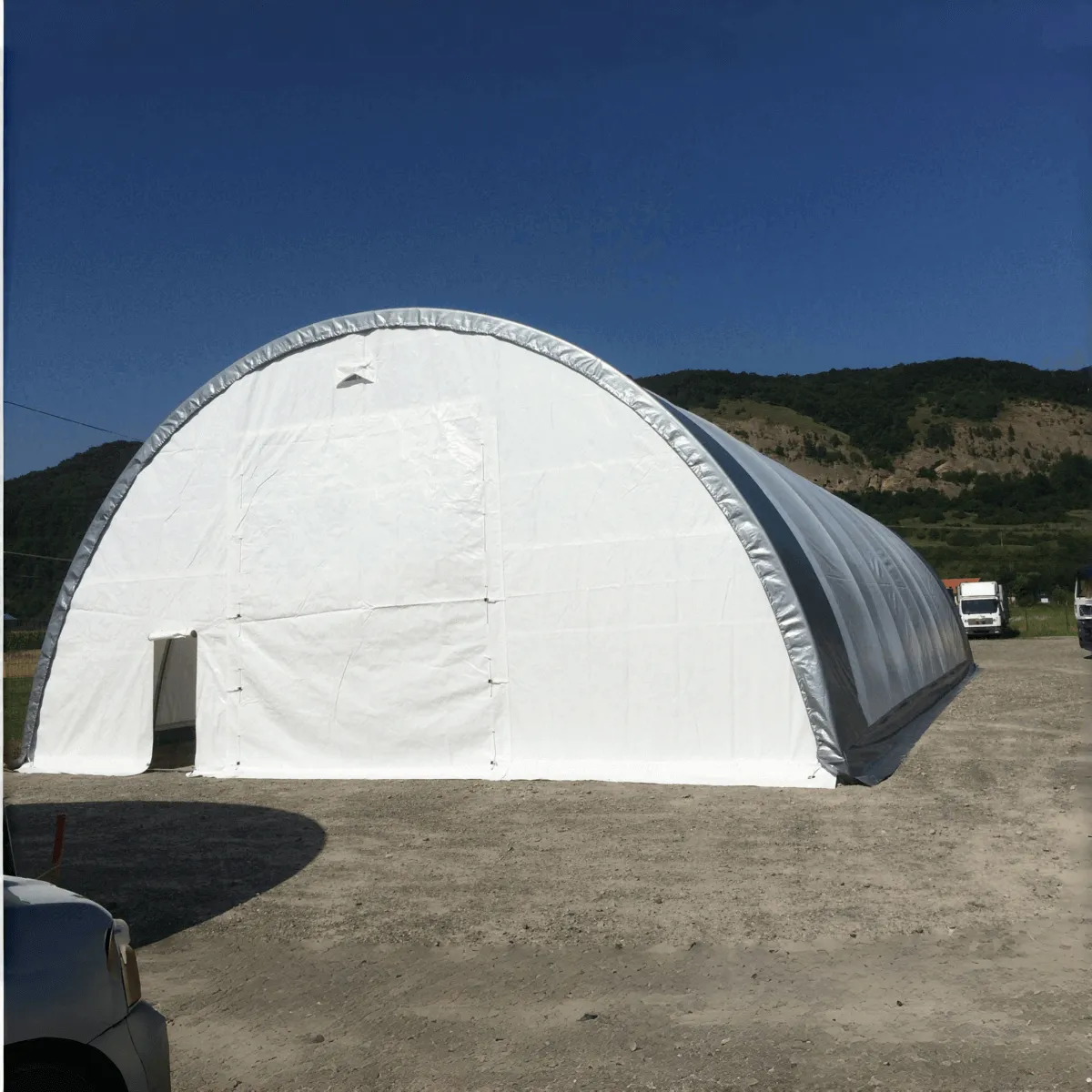

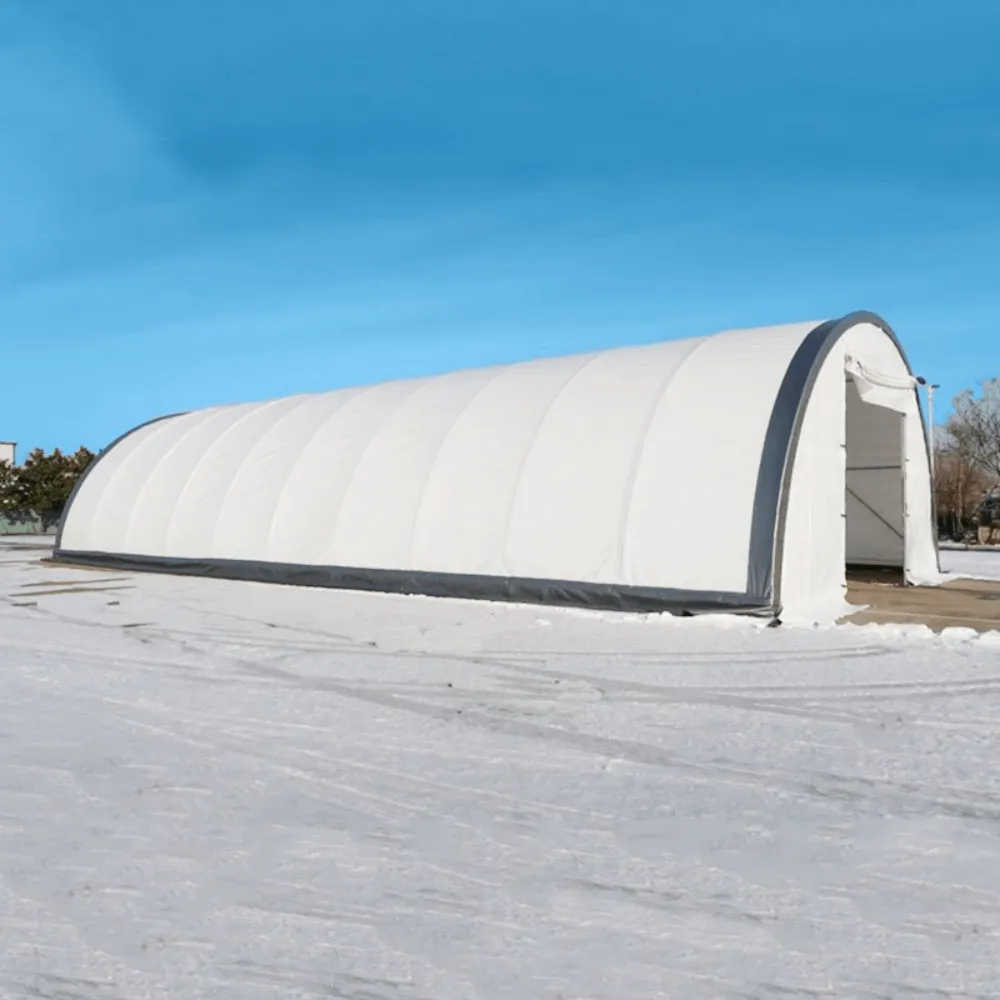

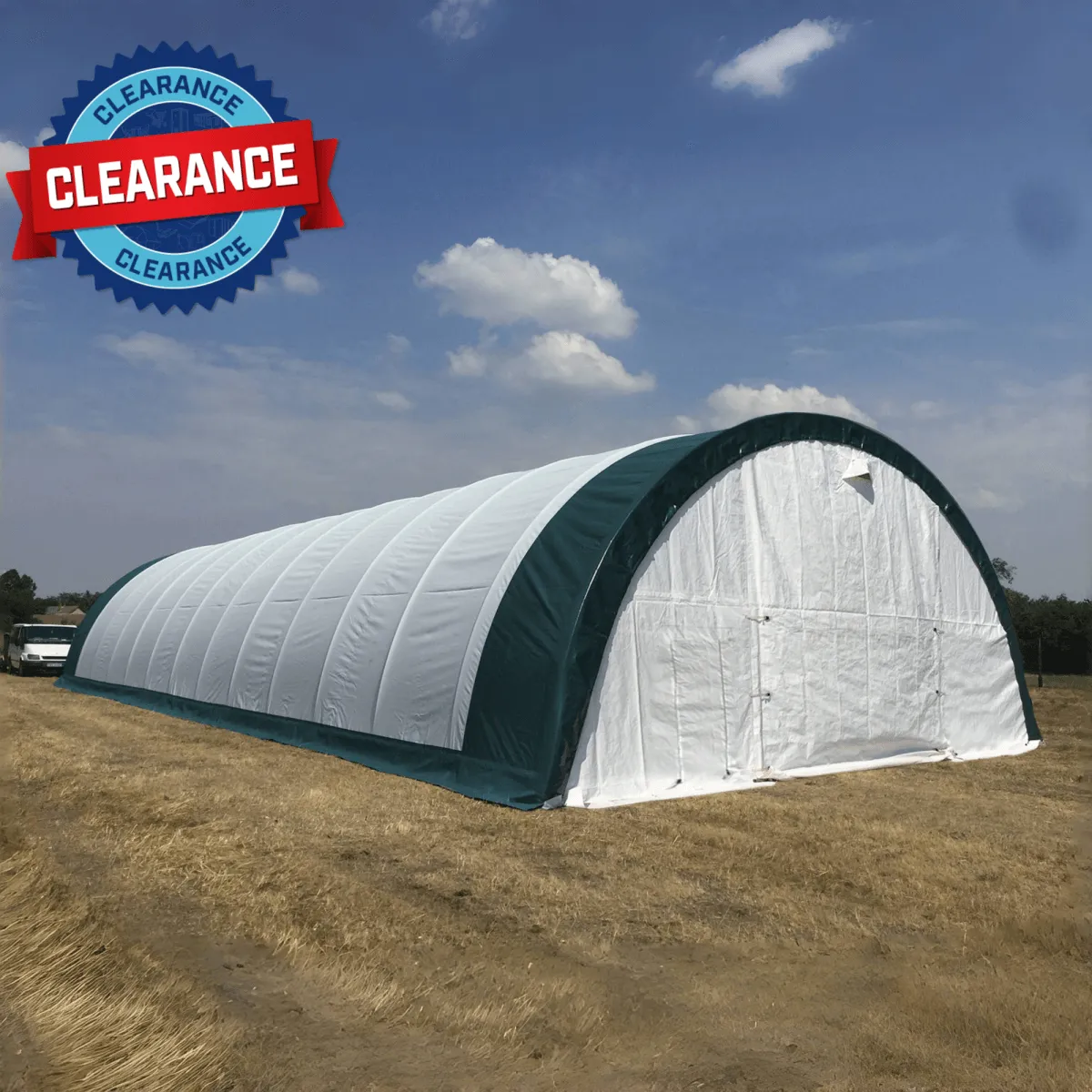

Clearance stock is available! The W40' x L80' x H20' Arch Wall Storage Tent features a durable 11oz PE cover and convenient drive-through doors. Perfect for storing equipment or vehicles, this spacious shelter is ideal for industrial use. Limited quantity at a specific warehouse – first come, first served!
Note
All CLEARANCE items are final sale. No returns or exchanges. Please inspect the goods carefully while picking them up.
Only pickup in IN, and NC warehouses. *Free shipping is not available for [Clearance] items!
No damage, brand new, clear out stock, limited quantity!
Specification
| Description |
Specifications |

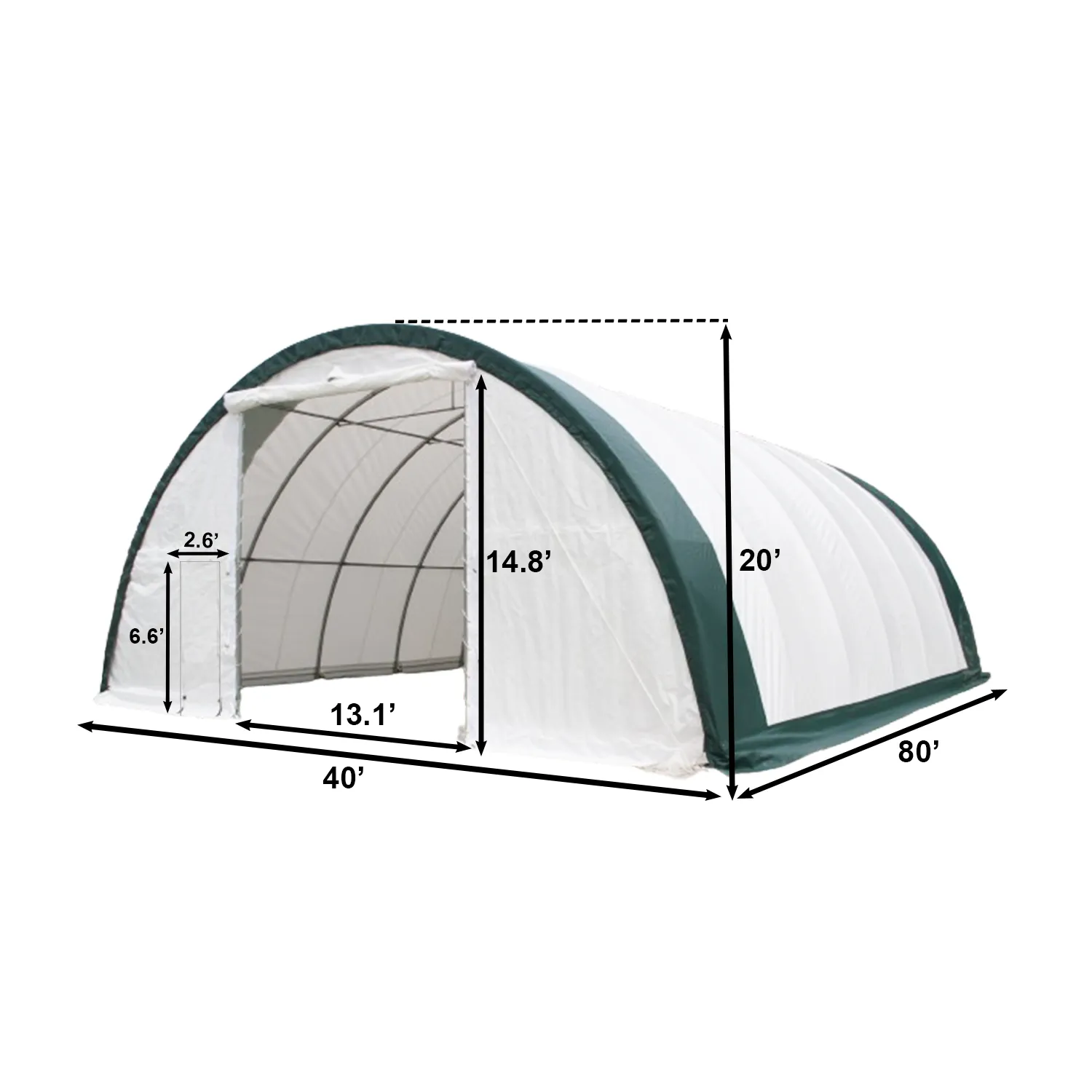

| Dimensions (WxLxH) | 40'x80'x20' |
| Door size (WxH) (Front & Rear) | 13.1'x14.8' |
| Door Type | Rope Pullup Door |
| Man Door (WxH) | 2.6'x6.6' |
| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 14 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 - 158 °F |
| Arch Ø | Ф 56x86x2mm |
| Purlin Ø | Φ 48x1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 13 |
| Number of Anchor plates | 26 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 4 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15 Years |
|
Warranty |
- PE: 2 Years Warranty. - PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): Box A: 116x30x39; Box B: 116x30x44
- Weight (lb): 4895
- A forklift or equivalent is required for unloading.
Parts
- Ratchet
