Model: SWR719
Our wire ropes are sold per metre. Add your required meterage into the quantity box.

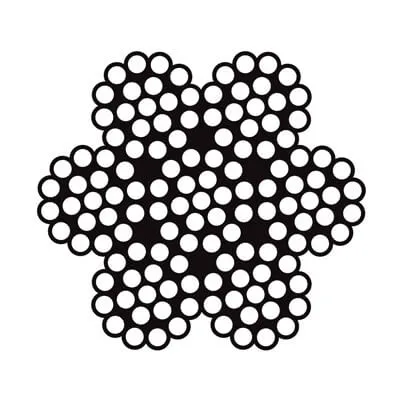

The 7 x 19 Construction Stainless Steel Wire Rope is meticulously crafted with a design that comprises seven strands, each consisting of 19 individual wires. This configuration provides an optimal balance between flexibility and strength, making it suitable for a wide array of applications that require robust lifting, hoisting, and rigging capabilities. The wire rope's construction also aids in minimizing kinks and bends, ensuring smooth operation over prolonged usage.
Ideal for wire rope slings, guardrails; staging rigging, running rigging, control ropes and steering cables. Suitable to be used in sewage treatment and saltwater conditions.
Dia of Rope | Breaking Strain (Kgs) | Grade of Rope |
2mm | 232 | 1570 AISI |
2.5mm | 362 | 1570 AISI |
3mm | 521 | 1570 AISI |
4mm | 927 | 1570 AISI |
5mm | 1448 | 1570 AISI |
6mm | 2086 | 1570 AISI |
7mm | 2839 | 1570 AISI |
8mm | 2708 | 1570 AISI |
10mm | 5793 | 1570 AISI |
12mm | 8343 | 1570 AISI |
14mm | 11'355 | 1570 AISI |
16mm | 14'831 | 1570 AISI |
